I. Core parametri et applicabiles exempla de C142 Air Filter Conventus
Exemplar idem: c142 (Core exemplar de filter elementum, ad completum numerum potest esse 1621735200, etc., ad apparatu manual pro details).
Applicabiles exempla, maxime applicabiles ad medium et magnam, amplitudo screw-type aeris compressors ut Ga90 (90kw), Ga110VSD (110kw hae exempla et in humano et in altiorem capacitatem et in filter.
Filtering praecisione: plerumque 1-5μm, potest efficaciter intercipiant pulvis, harenae particulas et aliis impudicitiis, cum filtering efficientiam super 99.9% (secundum ad iso signa).
Structural features: adoptando pleas filter chartam consilio, augendae in filtration regio, reducing attractio resistentia, et simul enhancing pulveris tenens facultatem (pulvis tenens facultatem est plerumque circa 150-200g).
II. Compositionem caeli filter ecclesiam

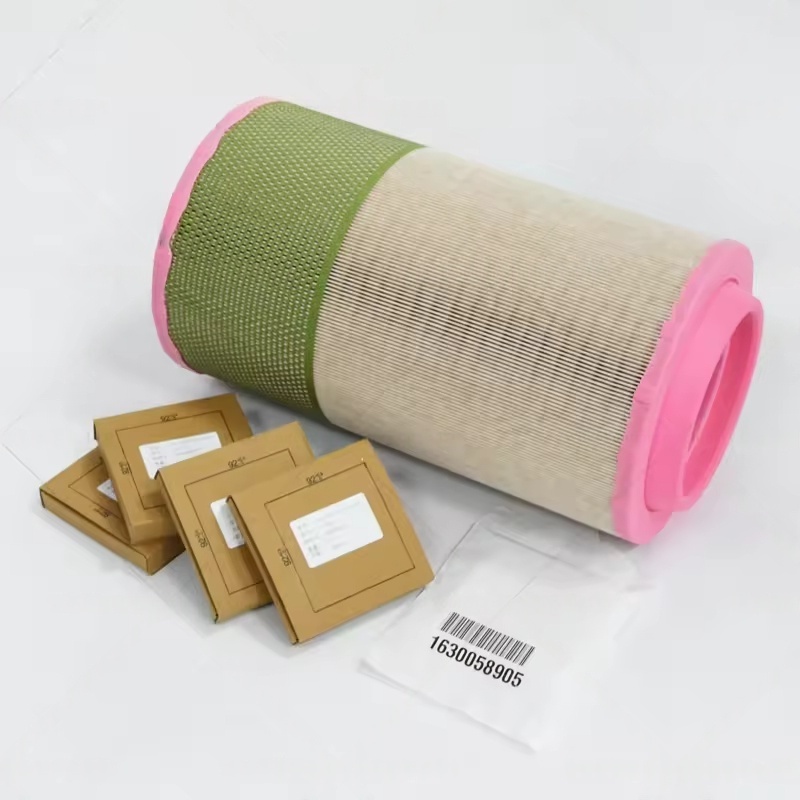

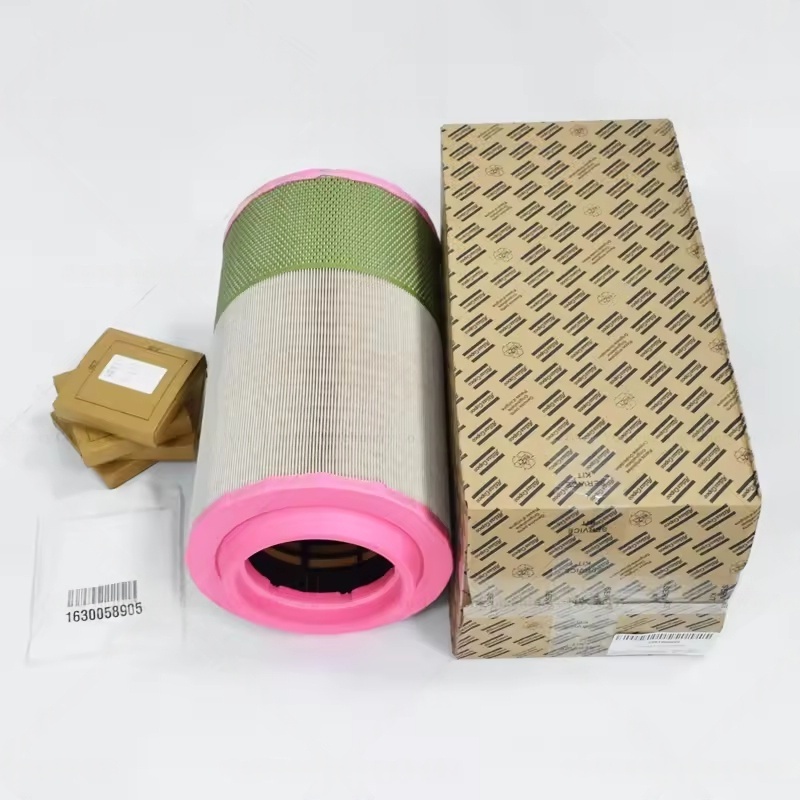

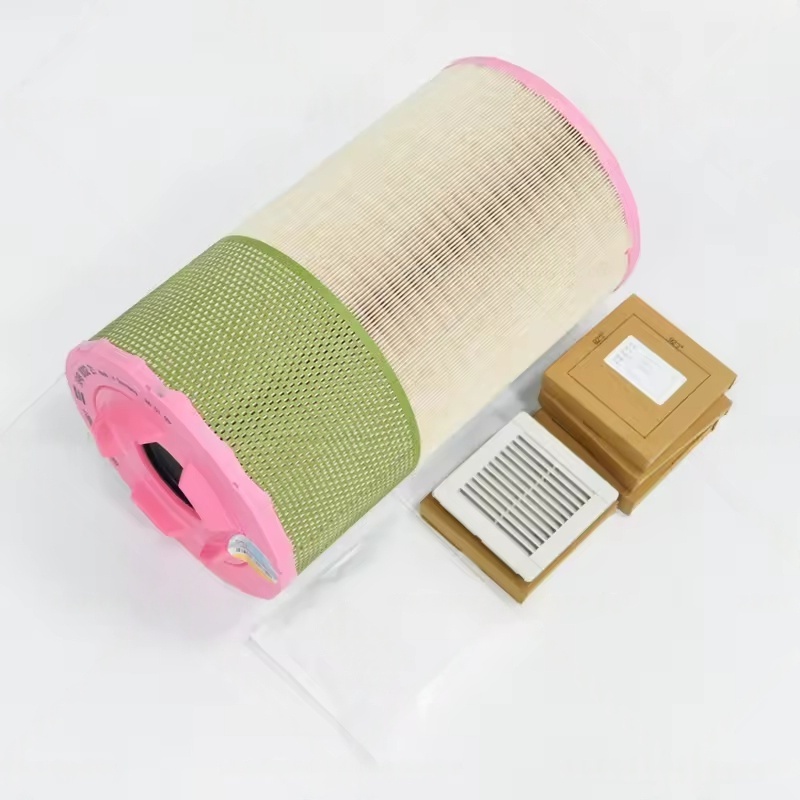

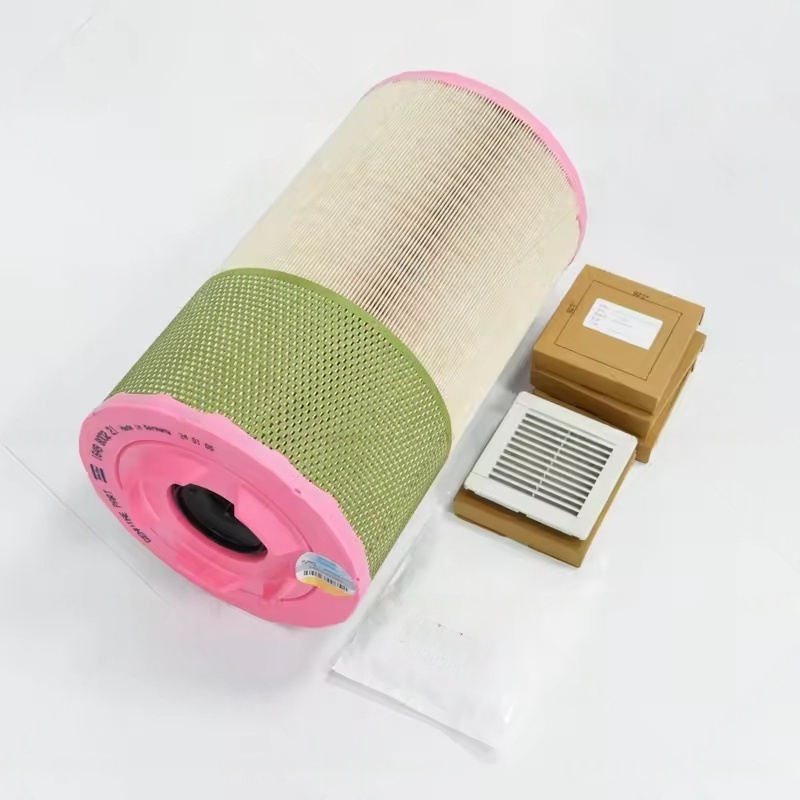

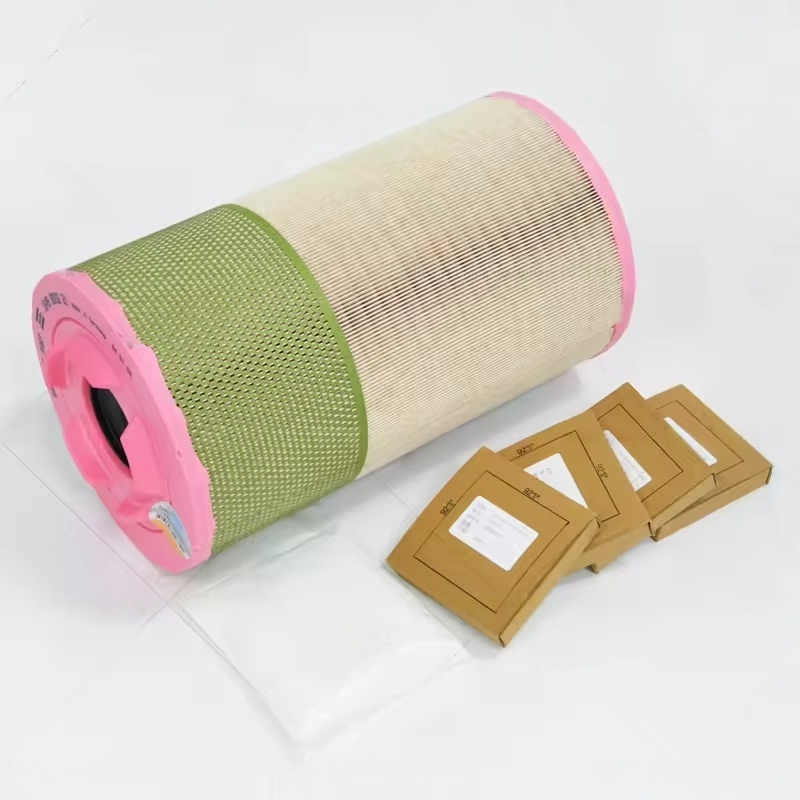

C142 Main Filter Elementum:
Et core filtering component, uti summus vires composita filter paper (quidam continent Nano-coating), featuring et efficiens filtration et humilis resistentia, ensuring firma filtration effectus etiam sub altum attractio volumine.
Filter habitationi (Crusta):
Plerumque ex metallum aut summus vires plastic, cum bono obsignationem et pressura resistentia, intus disposito cum positioning structuram ad curare filter elementum est installed firmiter et ne aer brevi, inquisita (INTRENTER AINTER INTERMENTARIUS pelagus unitas).
Salus Filter elementum (libitum):
Some models are equipped with a safety filter element on the inner side of the main filter element (secondary filtration), preventing impurities from entering the system in case of accidental damage to the main filter element, providing dual protection (requires a separate matching model).
Pressura indicator:
Installed on the filter housing, when the main filter element is clogged and the pressure difference between the inlet and outlet air reaches the set value (usually 5-6kPa), the indicator will trigger an alarm (such as a red display or connection to the unit control system for alarm), reminding of replacement.
III. Key puncta pro replacement et sustentationem
Replacement tempus:
Standard environment (pulvis concentration ≤ 1mg / M³), suggested reponere semel omnis 2000-3000 horis.
Dura environment (ut caementa plantis, metallis, etc): opus ad brevi ad 1000-1500 horis, aut reponere statim in terror a pressura differentia indicator.
Replacement DECAUTES:
Oportet uti Atlas Copco originale C142 Aeris Filtra aut Certified Aftermarket partes vitare filter materiales Quality exitibus ducens ad filter defectum et damnum ad principalis unitas.
Ante replacement, nolite machina et dimittis internum aer pressura. Cum aperire filter habitationi, attende ad Purgato interior habitationi ne residua impudicitia a procidens.
Ut signantes anulum de filter elementum et filter habitationi plene in contactu, sine rugis aut misalignment, ad vitare caeli leakage.
Ordinarius inspectionem:
Regulariter (ut weekly) inspicere specie filter habitationi pro aliqua damnum et statum pressura differentia indicator.
Si apparatu experientias satis attractio aeris volumine, minuatur exhauriunt pressura, aut abnormes a pelagus unitas, necesse est primum reprehendo si aer filter est adhaerent vel installed improprie.
